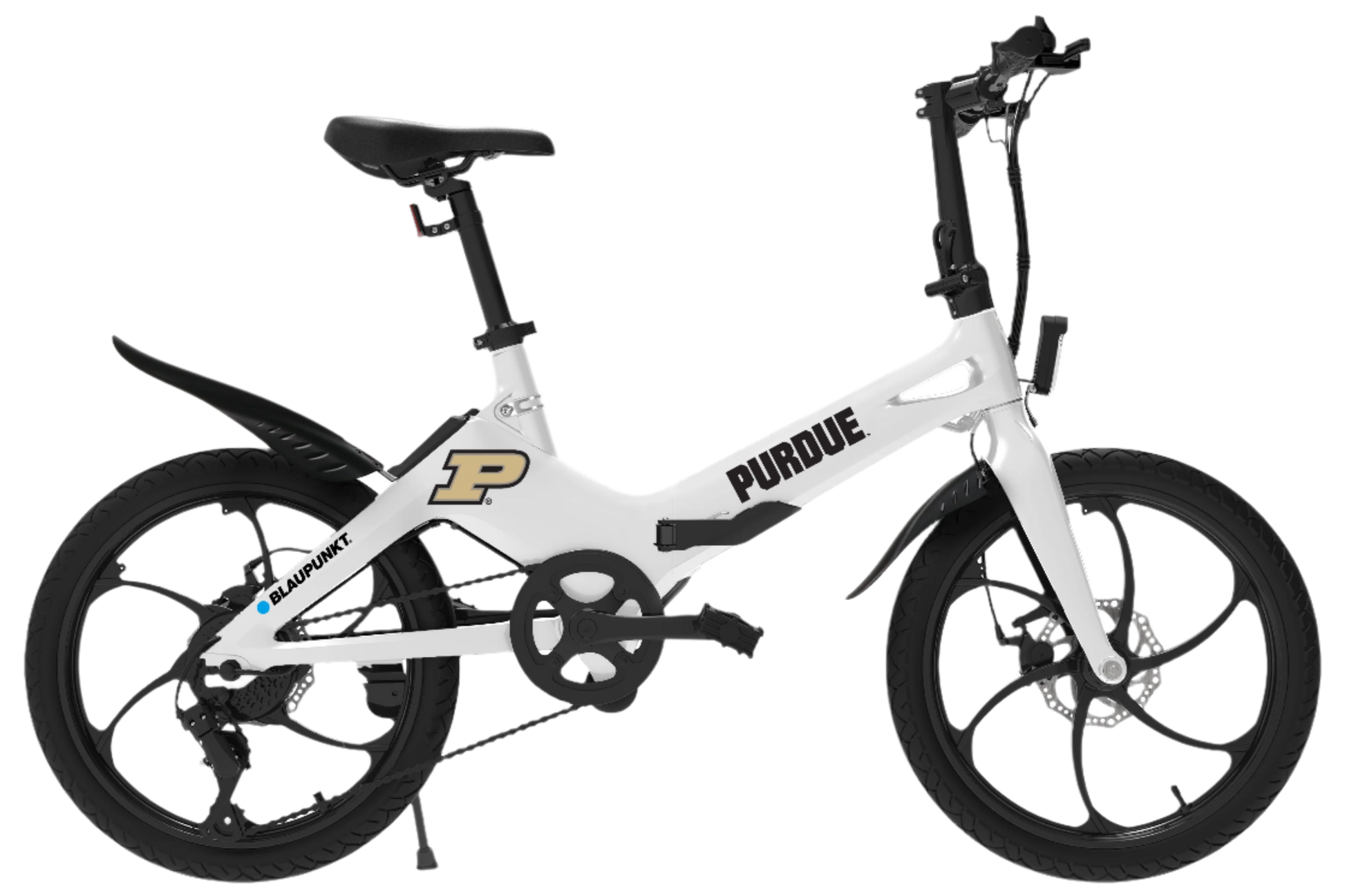

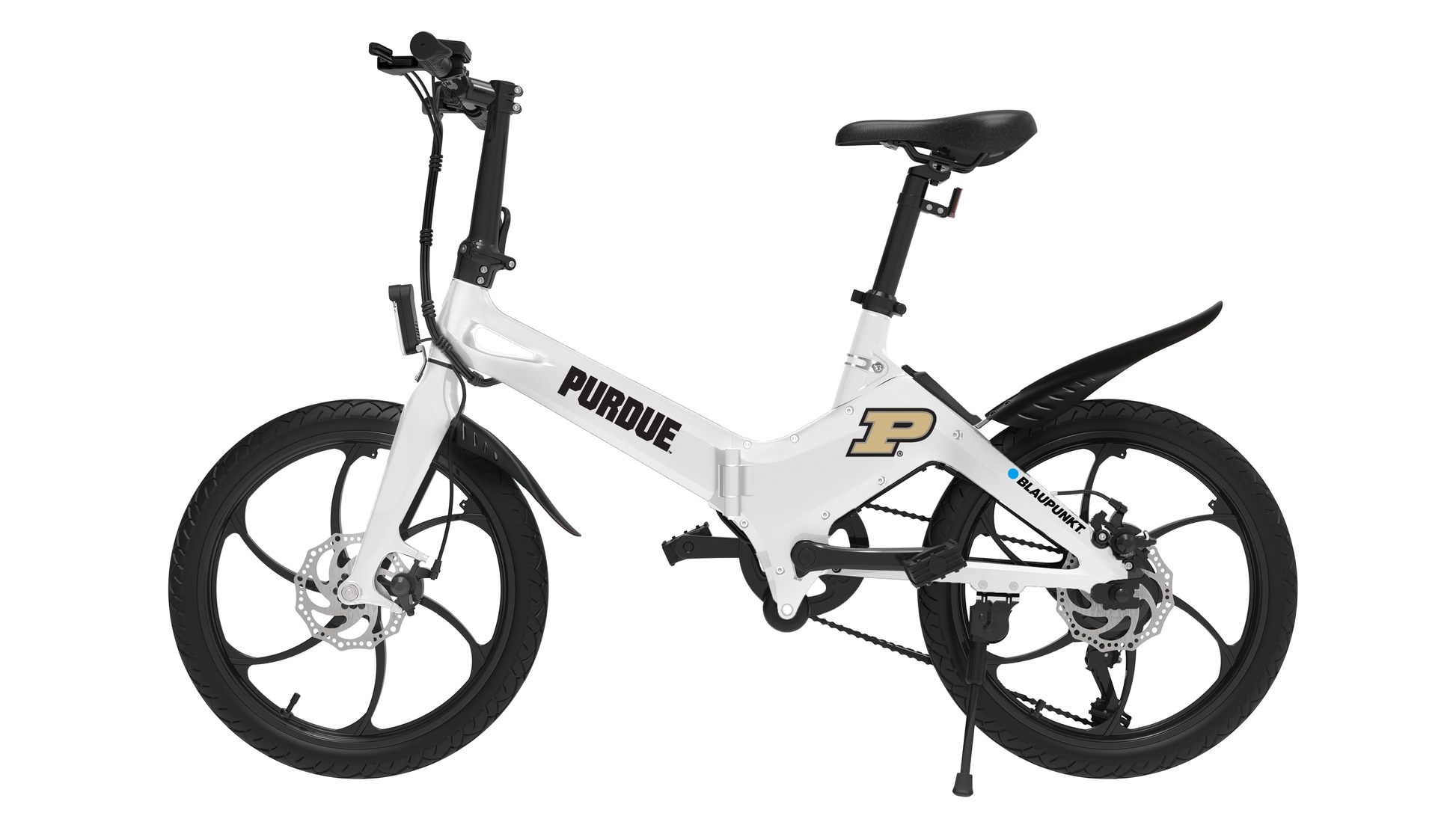

Purdue University eBike
Purdue University eBike
Shop our Collegiate Exclusive eBike for Purdue University.
Product Highlights
Product Highlights
- Sleek, durable, single die-cast foldable magnesium frame with no unsightly soldering joints.
- Portability at only 47 lbs, with an intelligent quick-release mechanism for easy storage, foldable pedals, and handlebar.
- One size fits all adults, height range 4'9" to 6'2"
- UL certified by UL solutions meeting standards ANSI/UL 2849 & UL 2271
- Blaupunkt 36V 350W rear wheel hub motor, 50 Nm torque and maintenance free.
- Magnetic closure system to securely keep the bike folded during transportation.
- Roller blade-style wheel at the bottom of the folded frame for enhanced portability.
- High-quality disc brakes for reliable stopping power.
- 6-speed Shimano SIS circuit for smooth gear shifting.
- 20-inch puncture-resistant, 2.125 tires for worry-free rides.
- Pedal assist with a 3-stage control, adjustable via the LCD bike computer, reaching speeds up to 32 km/h (20 mph).
- Throttle assist control conveniently located on the hand grip, allowing speeds up to 20 mph (32 km/h).
- Li-ion battery with a capacity of 36 V/10.5 Ah, ensuring a short charging time.
- Removable and lockable battery case located inside the frame.
Technical Specifications
Technical Specifications
- Frame: Single die-cast magnesium (60 x 22 x 41")
- Rims: Black magnesium
- Tires: 20" x 2.125
- Gears: Shimano 6-speed SIS derailleur (44T/14T-28T)
- Brakes (front/rear): Disc brakes, 160mm front / 180mm rear
- Headset: Semi-Integrated
- Maximum riding weight: 265 lbs (120 kg)
- Motor: Integrated in the rear wheel, DC 36V/350W, 40~45 Nm, brushless, maintenance-free
- Battery: 36V/10.5 Ah LG lithium-ion battery with integrated BMS (Battery Management System)
- Controller: 36V/15A DC
- Sensors: Cadence & speed sensor
- Driving modes: 3 levels of pedal and throttle assist
- Bicycle computer: LC display with three function keys, backlight. Functions: speed, ODO, TRIP, TIME, PAS LEVEL, battery, light, auto power off, error display
- Charger: Wide range power pack (AC 100 - 240 volts), 42V, 2A
- Charging time: About 4-6 hours
- Range: Up to 44 miles (70 km)*
- Top speed (supported): Max. 20 mph (32 km/h)
Lighting & Reflectors
Lighting & Reflectors
- Front LED headlight with integrated reflector, powered by bicycle battery
- Rear-mounted standard reflector, reflecting pedals, reflecting strips on tire walls
Dimensions & Weight
Dimensions & Weight
- Size (ready to ride): Approx. 60 x 22 x 41" (1520 x 570 x 1040 mm) (LxWxH)

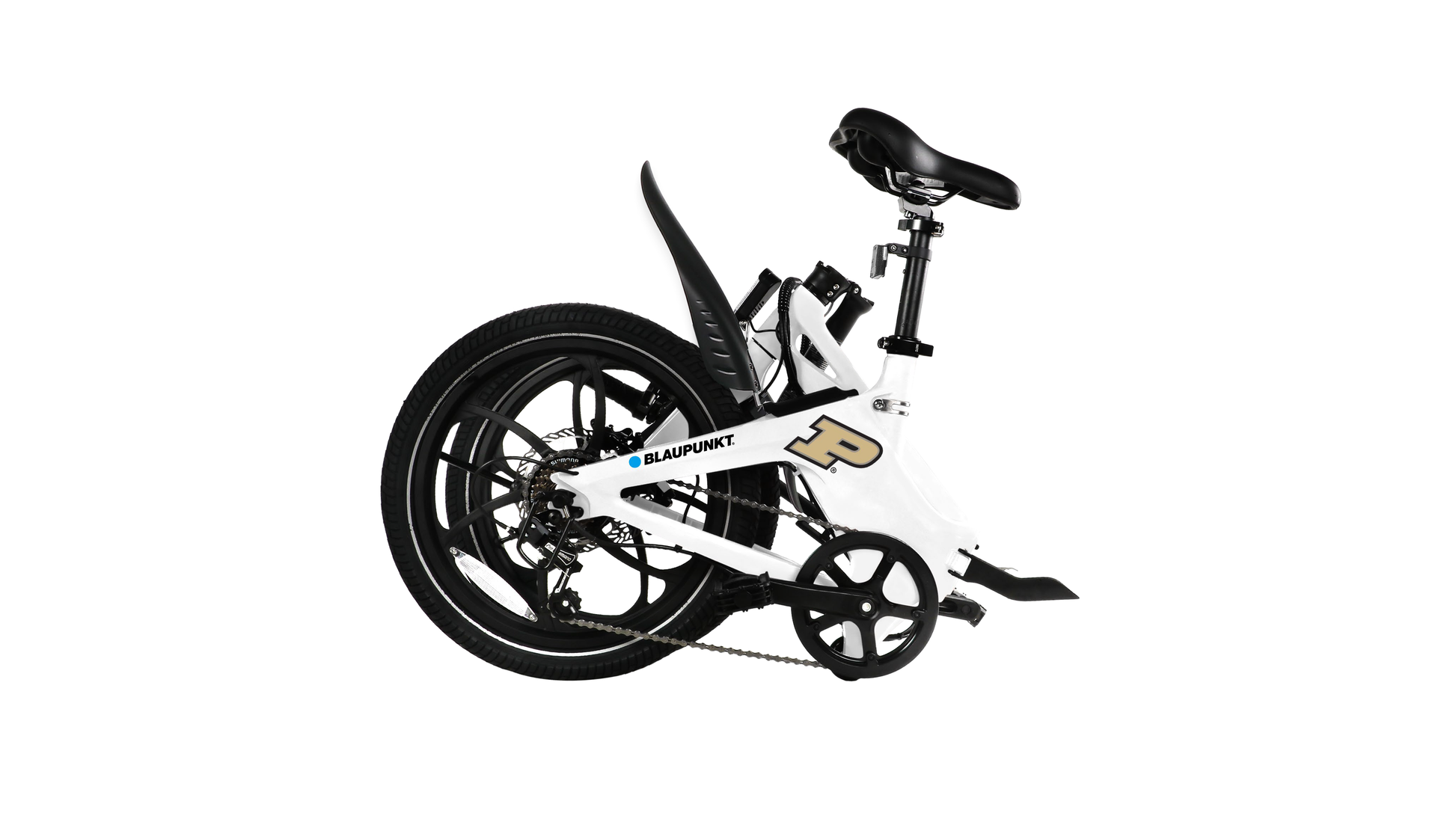

- Size (folded): Approx. 31.5 x 20 x 23.5" (800 x 500 x 600 mm) (LxWxH)
- Wheel Size: 20" x 2.125"
- Handlebar height: 13.4" (340mm)
- Handlebar width: 22" (560 mm)
- Head tube length: 4.3" (108mm)
- Stand over height: 18" (457mm)
- Saddle height: min 32" max 40" (813 - 1,016mm)
- Seat post tube: Ø 1.23" (31.6 mm)
- Wheelbase: 40" (1016 mm)
- Ground clearance: 8" (200 mm) (up to the transport roller)
- Frame height: 24" (600 mm)
- Weight (including battery): Approx. 47 lbs (21 kg)
- Battery weight: Approx. 5 lbs (2 kg)
Comes Inside Box
Comes Inside Box
- Folded Blaupunkt eBike
- Charger with plug
- Rear reflector to attach to seat post
- Front and Rear Mudguards for self-assembly
- Lithium battery in case with 2 keys
- User manual
The range with one battery charge depends on various factors, such as support level used, driving speed, physical fitness and personal performance of the rider, shifting behavior (if gearshift is available), road conditions, wind conditions, seating position, system weight, and temperature.
View full detailsMAGNESIUM
ALLOY
44 MILE
RANGE
CLASS 2
(20 MPH)
47 LBS
(W / BATTERY)
ROLLER
WHEEL
SINGLE
DIE-CAST MOLD
Sizing Chart
Measurement | Inches / MM |
Top Tube | 22 / 559 |
Reach | 19 / 483 |
Head Tube | 4.3 / 108 |
Standover | 18 / 457 |
Wheelbase | 40 / 1,016 |
Min Saddle | 32 / 813 |
Max Saddle | 40 / 1,016 |
